What are Front and Back Lit Channel Letters?

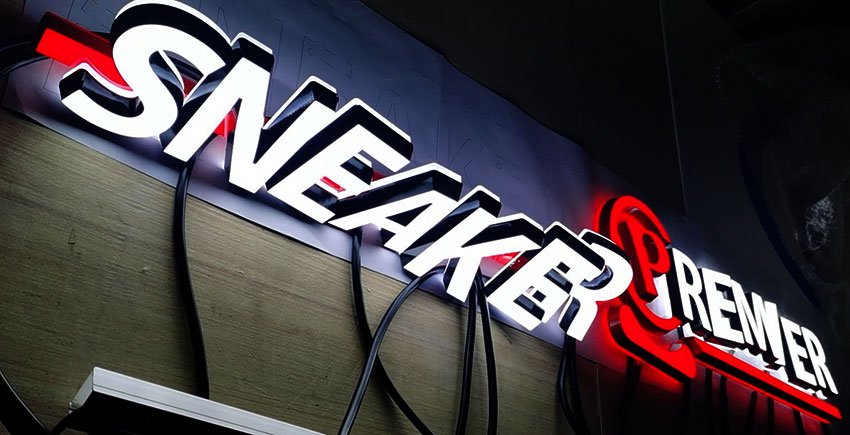

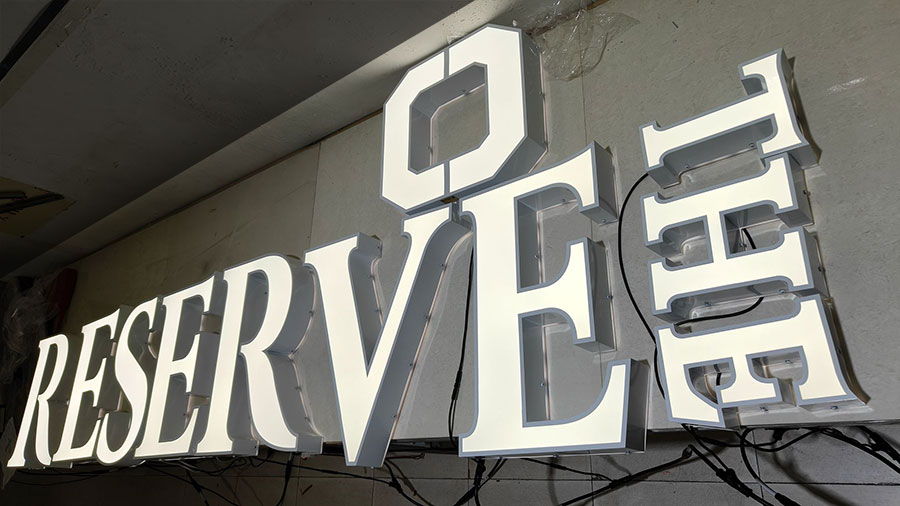

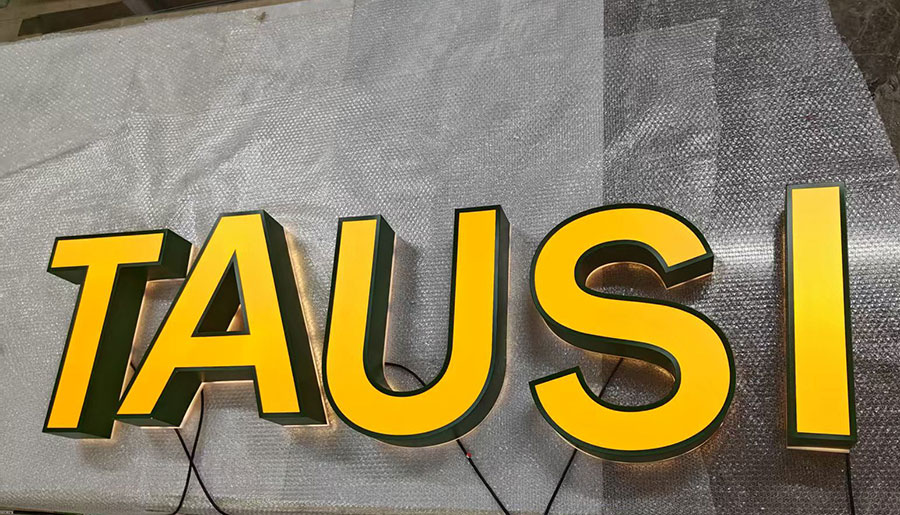

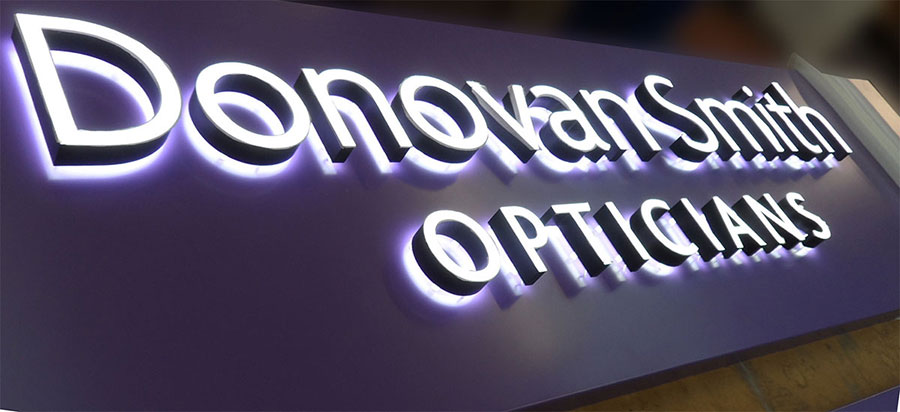

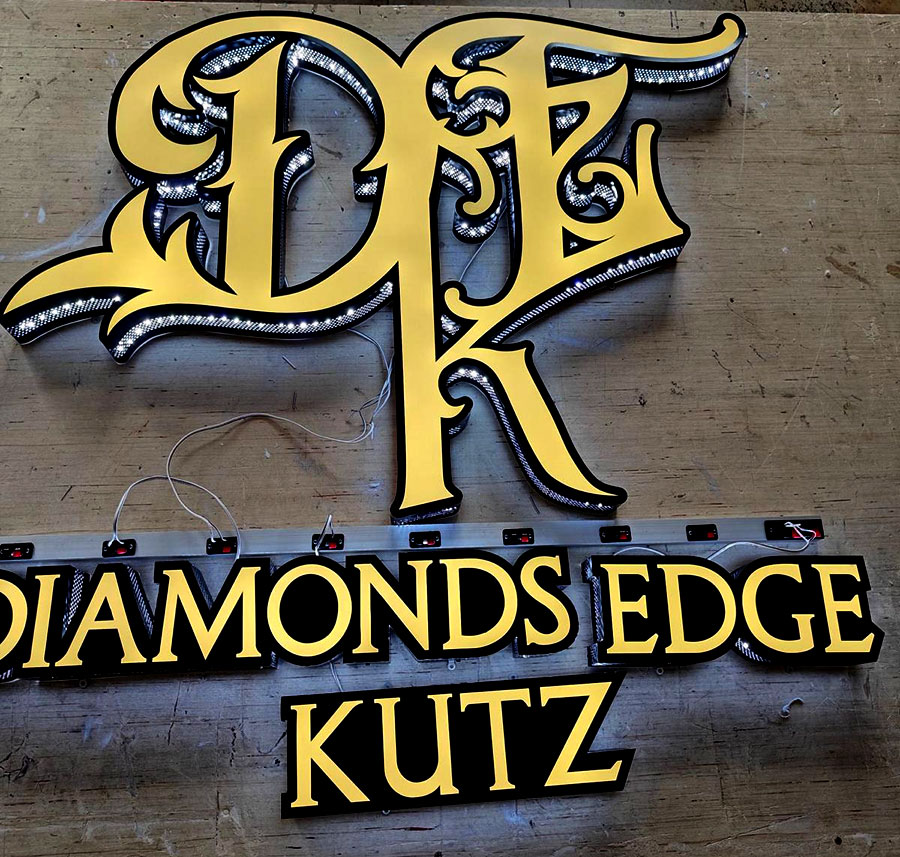

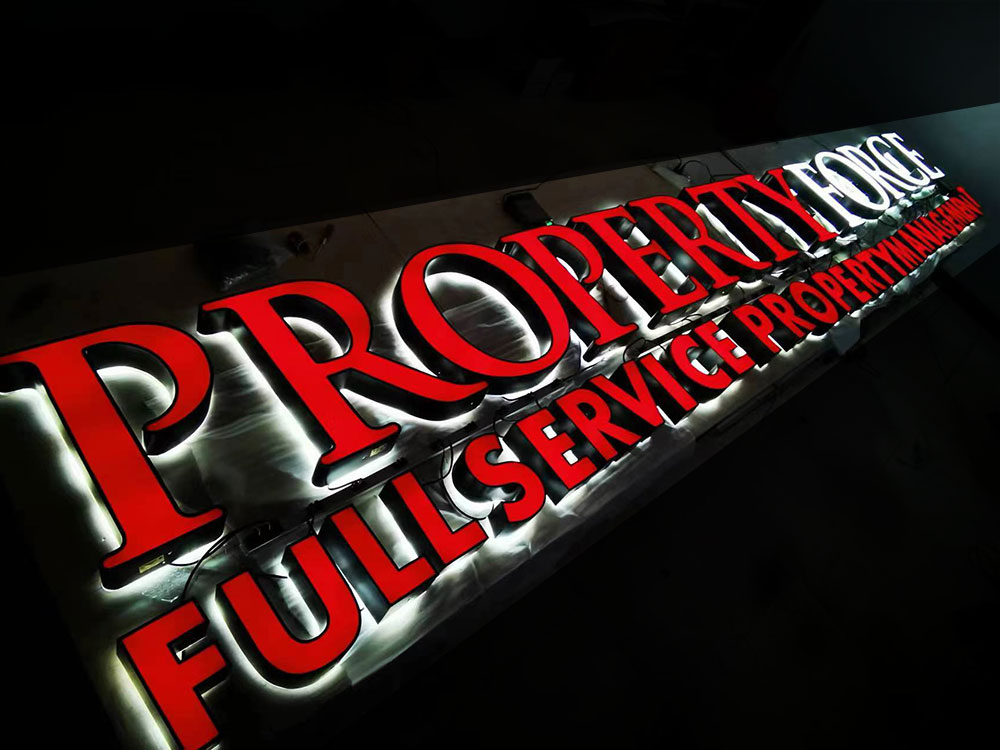

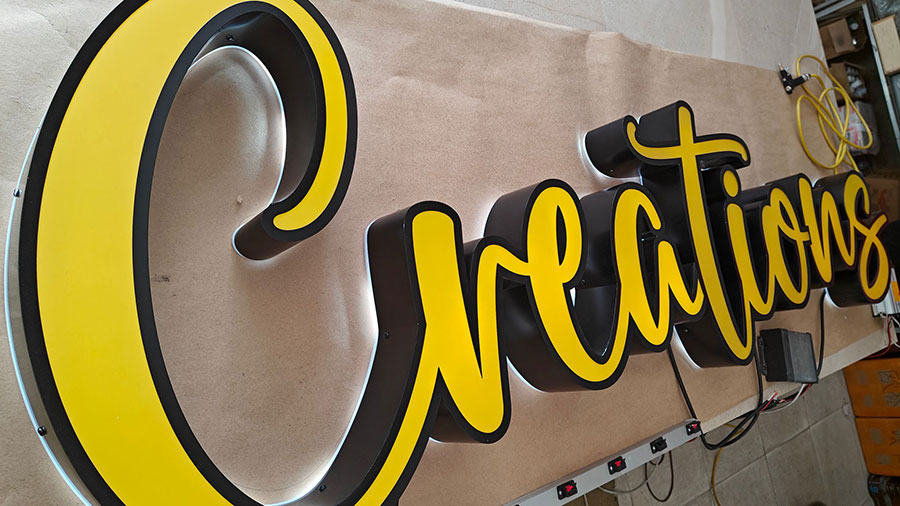

Front and Back Lit Channel Letters, are also called dual-lit or Channel Letters or Combination-lit channel letters. These illuminated business signs are three-dimensional signs and logos constructed with a translucent face and back, with LED lights installed inside them. When the sign is turned on, Face Lit and Back Lit channel letters shines from the front and also creates glowing halo from the back of the signage.

Popular choice for Businesses Visibility

Front and Back Lit Channel Letters provide bold daytime visibility and a premium floating nighttime effect that elevates any storefront.

At ChannelLetter.com, we manufacture UL-certified dual-lit channel letter signs with wholesale pricing, precision fabrication, and fast lead times. Whether you manage a single location or a multi-store franchise, our signs deliver the brightness, durability, and design flexibility your brand deserves.

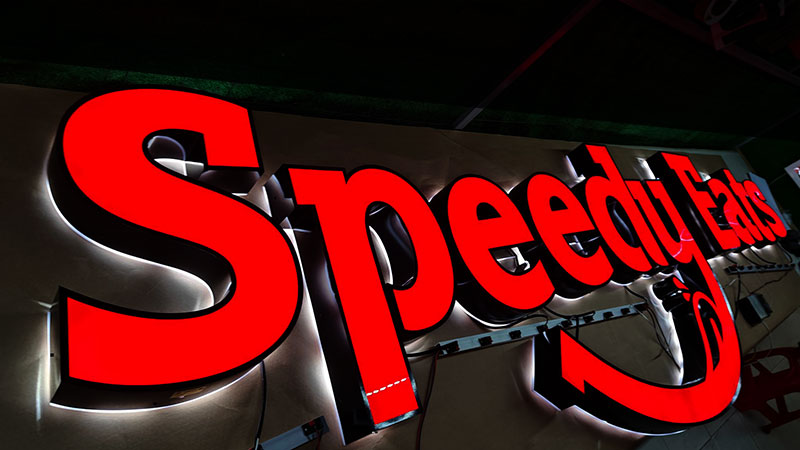

Front and backlit channel letters Speedy
Front and backlit channel letters speedy

ONLINE SIGN DESIGNER

Design your sign online with our sign designer and get price.

GET A FREE QUOTE

Click here if you have a Custom Design or need help with your Sign Design.

CONTACT US

Have Questions? Contact us by Phone, Email or our live chat.

Video: What Are Front and Back Lit Channel Letters?

Video: How to Install Front and Back Lit Channel Letters?

Get Wholesale/Factory Pricing: SAVE UP TO 40%

Channel Letters UL Certified for Quality & Safety

Free Shipping all over US- Fast Production -3 weeks delivery

Colors for Front and Back Lit Channel Letters

Front and Back Lit Channel Letters Signs are combination lit letters that merge the front lit (face lit) style with the backlit (reverse/halo lit) look in signage logo and letters. These type of illuminated signs provide face lit visibility plus the elegance of a halo glow ideal for brands that need to be seen clearly while projecting a high-end image.

To get the desired colors for the face and back of Face and Back Lit channel letter signage please refer to the information below.

  • Front Face illumination:
  • LEDs shine through an acrylic face of the sign for strong legibility from distance.
  • Acrylic faces in standard or premium translucent colors for crisp front illumination.
  • Thousands of Color options, Vinyl overlays or day-night films available for special effects.
  • RGB : Dynamic color-changing effects with app or remote controllers.
  • Trim caps or Trimless faces depending on your design and visibility needs.
  • Back halo glow illumination:
  • LEDs behind each illuminated sign letter reflect off the mounting surface, creating a premium halo that outlines the letter shape creating a floating effect.
  • Colored LEDs are installed to provide colors for the halo glow of Front and Backlit channel letters.
  • RGB LEDs: Dynamic color-changing effects with app or remote controllers.

  • Returns (Letter Sides):

  • The sides are made up of Aluminum or Stainless Steel.
  • You can have metal finishes, mirror or brushed.
  • Thousands of Color options.
Backlit channel letters - Front and Back Lit Channel Letters

What are included with your Front and Backlit channel letters?

  • Templates & Wiring Diagrams
  • UL-certified components
  • Plug-and-Play wire kit for easier installs
  • 2-Year Warranty on LEDs and power supplies
davinci 400x304 1 - Front and Back Lit Channel Letters

Why Choose ChannelLetter.com

  • UL-Certified Builds for safety and code compliance
  • Wholesale Pricing direct from the manufacturer
  • 2-Year Warranty on LEDs and power supplies
  • Plug-and-Play Wiring Kits for easier installs
  • Unlimited Fonts & Custom Logos supported
  • Fast Shipping across the U.S. & Canada

You can use our Online Sign Designer to easily create Signs using Face and Back Lit Channel Letters option for your business and submit it to request a quote. Or if you already have a design for your sign you could use our Request a Quote form to submit the design for quotation

Wholesale Price and Turnaround Time

Because we manufacture at scale, we offer competitive wholesale pricing and fast production for Face and Back Lit Channel Letter signs. Every project is custom. Your cost depends on letter height, stroke complexity, finish, LED type, mounting, and controller options.

Trim Cap, Return & Size for Face Lit Channel Letters

Return is the side sections of Face and Back Lit Channel Letter. Returns can be painted in any colors of your choice or with any of mirror or brushed finish. For Metal finishes we do have Premium Metal Finish options for both returns and trim caps.

Trim Cap is a metal lining around the edge of a illuminated channel letter signage. Trim provides bold outline to Front and Back Lit Channel Letter signs We also have options for Trimless(without Trim Cap) for Face and Back Lit Channel Letters but these are only available for letters or logos less than 20 inches in height.

Size Options: We can manufacture signage for Front and Back Lit Channel letters with any size from 2 inches to 120 inches in height. If you have any special requirements please contact us and we will gladly help you to turn your dream sign into reality.

TRIM AND RETURN V2 - Front and Back Lit Channel Letters

How to install Front and Back Lit Channel Letters?

There are various installation methods for Face and Back Lit Channel Letters. Below are the different installation methods that will help you make an informed decision for your business signage.

Direct Mount or Flush Mount Installation

In this installation method, the Front and back lit Lit Channel letters are mounted directly to the wall with standoffs for the halo gap using spacers and threaded screws. The spacers are usually 1 or 2 inches in length.

Raceway Installation

In this installation method, the Face and Back Lit Channel letters are mounted directly on a Raceway directly which is a rectangular metal box. This type of installation simplifys installs and minimizes wall penetrations and holes to the installation surface. The raceway also contains the electrical wiring and power supply. The raceways can also be painted to match the color of your building. Raceway will add additional cost to the signage.

Backer Panel Mount Installation

In this installation method, the illuminated signs are mounted on a backer panel and then attached to the building facade. Backer panel will add extra cost to the signage. Backer panel creates a consistent reflective surface and a clean architectural line with high-contrast halos.

When to Choose Dual Lit vs. Other Types of Signs

  • Dual Lit (Face + Halo Lit): Choose when you need maximum readability plus a high-end glow. Great for evening districts and brands that want to look premium.
  • Face-Lit Only: Choose when daytime visibility is your top priority and budgets are tight.
  • Backlit Only: Choose when you want a luxury look and the storefront has adequate ambient lighting around.
  • RGB (Face and Halo Lit): Choose for entertainment, hospitality, and brands that use color as a marketing asset.

Frequently Asked Questions

Face lit channel letters illuminate through the front face only. Dual Lit (Combo Lit) adds a back halo for a premium outline glow. You get premium plus upscale ambiance.

view Face lit and Back lit channel letters in wikipidia

Yes. Our signs are manufactured with UL-listed components and engineered for code compliance and safety.

You can Either

Use our Online Sign Designer to design your sign and request quote

Or submit your signage details using Request a quote form

For Front and Back lit channel letters, we calibrate LED density and diffusion so the face remains legible from distance while the halo stays soft with no hot spots.

Flush mount with standoffs is most common for a clean halo. Raceways simplify installs and reduce wall penetrations. Backer panels are helpful on uneven or dark walls.

We include paper templates, wiring diagrams, and (when selected) plug-and-play kits.

Many jurisdictions require sign permits. We provide technical drawings and UL details to support your submittal.

We include a 2-year warranty on LEDs and power supplies. Our team can advise on maintenance to maximize longevity.

Yes we can match your brand colors and fonts exactly for Front and Back Lit Channel Letters. Please contact us and our team will be glad to help you.

All our Face and Back lit channel letters are built to withstand harsh outdoor weather with weather resistant materials, seals, and finishes. LEDs and power supplies are UL Certified and waterproof selected for reliability in heat, cold, moisture, and UV.

Timelines depend on complexity and volume, but our wholesale workflow is optimized for quick turnarounds. Contact us with your schedule.
